HIGHLIGHTS
1,766 CFM (50 m³/min) from a 16 in blade
Three speeds with 54W / 47W / 41W step power
Lockable 80° oscillation and 32° downward tilt
Easy-reach pull cords, bracket and mounting hardware included
ETL Listed C/US and a 1-year limited warranty

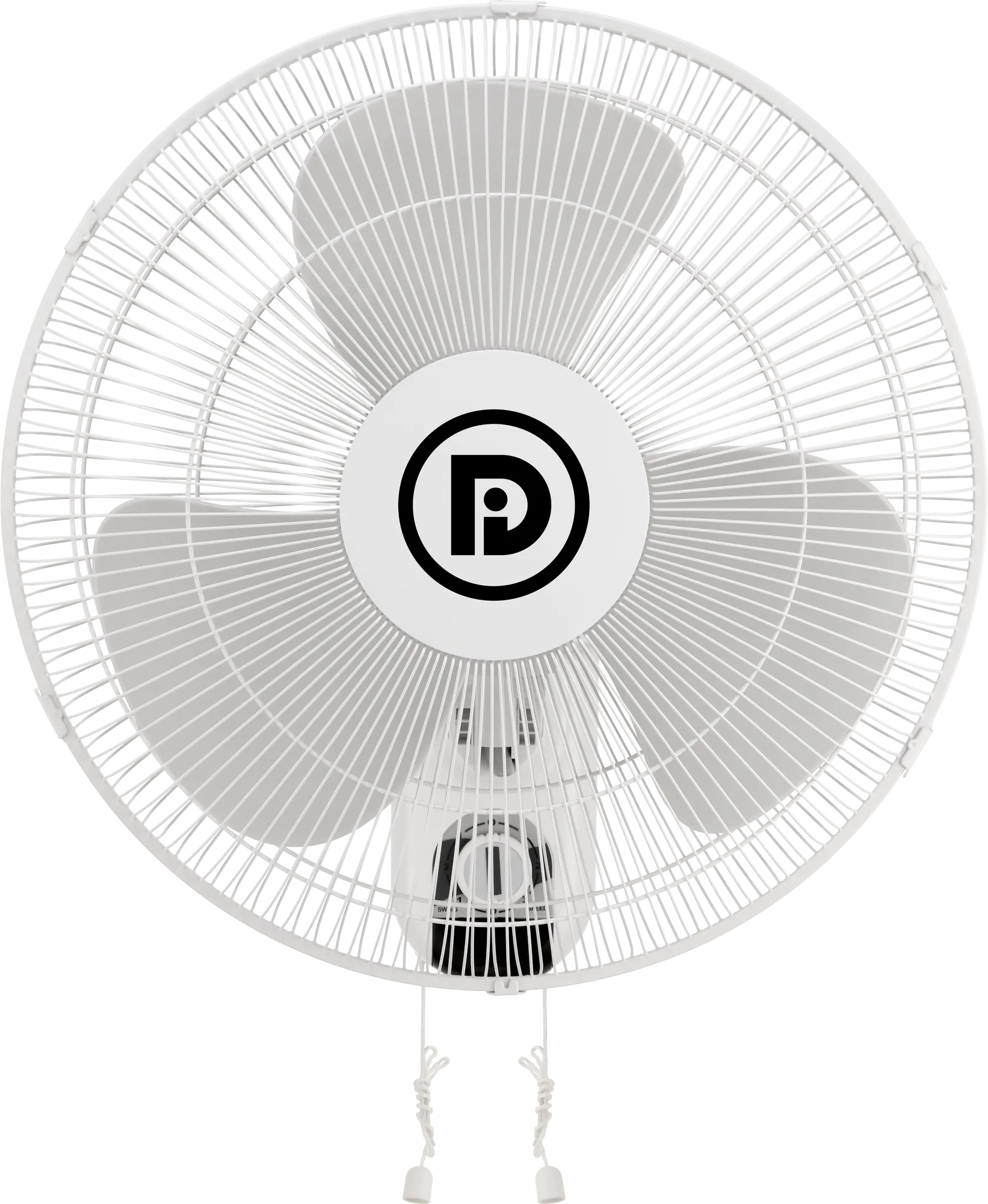

16" OSCILLATING WALL MOUNT FAN
AIMED AIRFLOW. CLEAR FLOORS.
The Dialed In 16″ Oscillating Wall Mount Fan puts room circulation on the wall, above the working level, with three speeds, lockable 80° oscillation, and a 32° downward tilt you control from the floor. It is built for everything from grow rooms and greenhouses to patios, sunrooms, workshops, garages, warehouses, and commercial spaces.
Floor space in a working room is already spoken for. Benches, carts, and walkways need it more than a fan does. Mounting the airflow keeps it in position, aimed where you set it, and clear of the work.
- Three speeds (54 / 47 / 41W) step output to match room load through the day.
- Lockable 80° oscillation sweeps the room for general circulation or holds air on a single zone.
- 32° downward tilt aims air down to the canopy line and working height.
With 1,766 CFM (50 m³/min), a 60W / 0.5A rating, and a measured 53 to 60 dB range, the 16″ is built for real rooms and long daily runtimes. Two easy-reach pull cords set speed and oscillation from the floor, and the wall bracket and mounting hardware ship in the box. Need more reach? The 18″ Oscillating Wall Mount Fan moves 2,119 CFM on the same 60W rating.
Step power is published at every speed, so a bank of fans can be planned into a circuit before the first one goes on the wall. Three speeds. One sweep. Aimed down. Built by growers, for growers.
16" OSCILLATING WALL MOUNT FAN
AIMED AIRFLOW. CLEAR FLOORS.
The Dialed In 16″ Oscillating Wall Mount Fan puts room circulation on the wall, above the working level, with three speeds, lockable 80° oscillation, and a 32° downward tilt you control from the floor. It is built for everything from grow rooms and greenhouses to patios, sunrooms, workshops, garages, warehouses, and commercial spaces.
Floor space in a working room is already spoken for. Benches, carts, and walkways need it more than a fan does. Mounting the airflow keeps it in position, aimed where you set it, and clear of the work.
- Three speeds (54 / 47 / 41W) step output to match room load through the day.
- Lockable 80° oscillation sweeps the room for general circulation or holds air on a single zone.
- 32° downward tilt aims air down to the canopy line and working height.
With 1,766 CFM (50 m³/min), a 60W / 0.5A rating, and a measured 53 to 60 dB range, the 16″ is built for real rooms and long daily runtimes. Two easy-reach pull cords set speed and oscillation from the floor, and the wall bracket and mounting hardware ship in the box. Need more reach? The 18″ Oscillating Wall Mount Fan moves 2,119 CFM on the same 60W rating.
Step power is published at every speed, so a bank of fans can be planned into a circuit before the first one goes on the wall. Three speeds. One sweep. Aimed down. Built by growers, for growers.
HIGHLIGHTS
1,766 CFM (50 m³/min) from a 16 in blade
Three speeds with 54W / 47W / 41W step power
Lockable 80° oscillation and 32° downward tilt
Easy-reach pull cords, bracket and mounting hardware included
ETL Listed C/US and a 1-year limited warranty
Airflow Built for Every Room
Three Speeds
Low, mid, and high step output to match room load. Hold steady circulation on low, or push full output on high as conditions shift through the day.
Lockable 80° Oscillation
Sweeps the room for general circulation. Lock the head to hold air on one bench, aisle, or corner.
32° Downward Tilt
Aims air down from level to 32°. Places circulation at the canopy line and working height.
Why Mount the Airflow
- Clear Floors: Benches, carts, and walkways keep the space.
- Set Once, Stays Put: A mounted fan holds its position and aim.
- Aim Where It Counts: The 32° downward tilt puts air at working height.
- Sweep or Hold: Oscillate across the room, or lock on one zone.
- Control From the Floor: Two pull cords reach down from the fan.
- Planned Circuits: Step power is published at every speed.
Core Features & Benefits
- 1,766 CFM (50 m³/min) airflow from a 16 in (406 mm) blade
- 60W / 0.5A rating at 120V / 60Hz
- Three speeds: High 54W / Mid 47W / Low 41W (±4W)
- Lockable 80° oscillation (±5°)
- 32° downward tilt (±2°)
- Two easy-reach pull cords for speed and oscillation
- 53 to 60 dB across the three speeds
- Wall bracket and mounting hardware included
- ETL Listed C/US
- Backed by a 1-year limited warranty
What It Does in the Room
Clear Floor Space
Circulation moves to the wall, and the floor goes back to the work.
Built for Real Rooms
Wall-mounted, pull-cord simple, and built for long daily runtimes.
Aimed Airflow
Set the tilt and the sweep once, and the fan holds them.
Consistent Rooms
Mount the same fan in every room and run the same settings.
Detailed Specifications
Spec |
Value |
|---|---|
| Fan Diameter | 16 in (406 mm) |
| Airflow | 1,766 CFM (50 m³/min) |
| Step Power | High 54W / Mid 47W / Low 41W (±4W) |
| Power / Current | 60W / 0.5A |
| Voltage / Frequency | 120V / 60Hz |
| Noise Level | 53 to 60 dB |
| Oscillating Angle | 80° (±5°) |
| Vertical Adjustment | 32° down / 0° up (±2°) |
| Control Type | Pull cord (speed and oscillation) |
| Mount Type | Wall mount, bracket included |
| Certification | ETL Listed C/US |
| Warranty | 1 year limited |

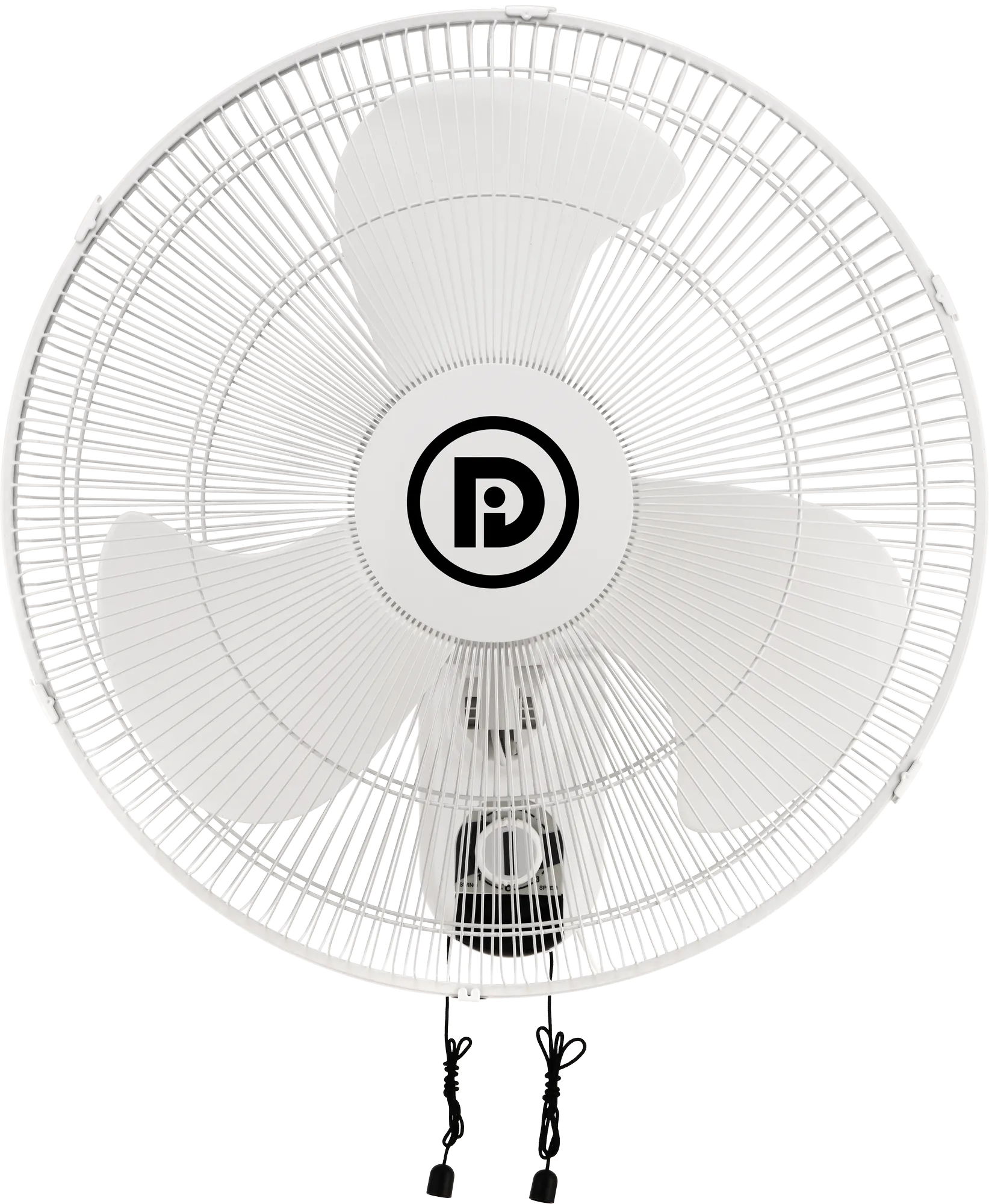

Move More Air with the 18" Oscillating Wall Mount Fan
MORE REACH, SAME DRAW
The 16″ covers the room. The 18″ covers more of it. A larger blade moves 2,119 CFM on the same 60W rating, with the same pull-cord controls, oscillation, and tilt.
Frequently Asked Questions
Yes. The wall bracket and mounting hardware are included in the box.
No. The head tilts down from level to 32°, which aims air toward the canopy and working height.
Yes. The 80° oscillation is lockable. Use the oscillation pull cord to hold the fan on one zone.
The 18" moves 2,119 CFM against 1,766 CFM for the 16", runs 53 to 62 dB against 53 to 60 dB, and draws 55W on high against 54W. Both carry a 60W / 0.5A rating and the same pull-cord controls.
Both models carry a 60W / 0.5A rating. Step power is published by speed: 54 / 47 / 41W on the 16" and 55 / 49 / 41W on the 18".
READY TO RUN THE 16" WALL FAN?
Turn wall space into aimed circulation and clear floors.
